• Wheels, 18" (45.7 cm) forged polished aluminum (Includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. Upgradeable to (PYS) 20" (50.8 cm) forged polished aluminum wheels. Included with (WEA) Z71 Appearance Package.)
• Tires, LT265/70R18E all-season, blackwall (Upgradeable to (QFC) LT265/75R20E all-terrain tires when (PYS) 20" (50.8 cm) forged polished aluminum wheels are ordered or (QGM) LT265/70R18E all-terrain tires when (PYV) 18" (45.7 cm) forged polished aluminum wheels are ordered.)
• Pickup box, Fleetside
• Recovery hooks, front, Black
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper, front chrome includes chrome bumper end caps
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete.)
• Moldings, bodyside, body-colored
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators (Upgradeable to (DPN) outside vertical camper mirrors. Mirrors are body-colored and include curb-tilt feature.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab Models, includes rear window. With Extended Cab Models, includes rear and rear quarter windows. With Crew Cab Models or (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, color-keyed

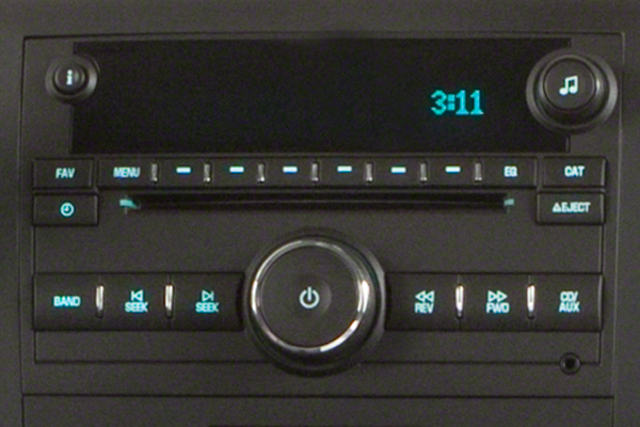

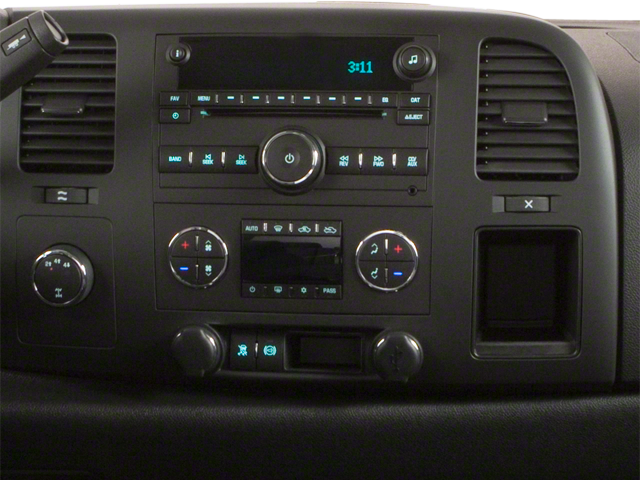

• Audio system, AM/FM stereo with CD player and MP3 playback USB port, auxiliary input jack, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume, TheftLock and 36 cross-band presets
• SiriusXM Satellite Radio is standard on nearly all 2013 GM models. Enjoy a 3-month trial to the XM Premier package, with over 140 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio (Not available with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. If you subscribe after your trial period, subscriptions are continuous until you call SiriusXM to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

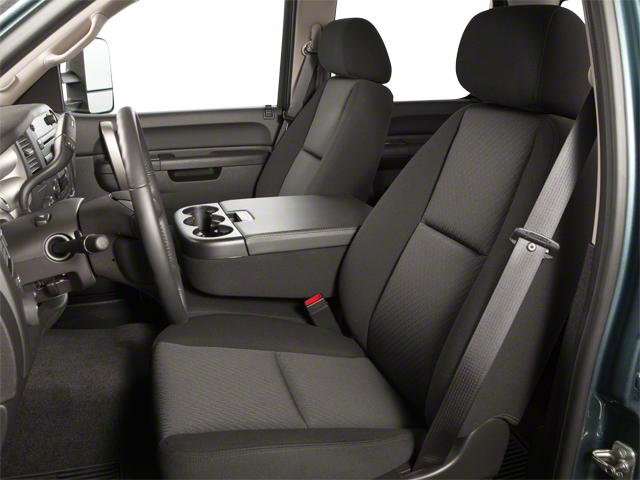

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Seats, Leather-appointed front seats
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power

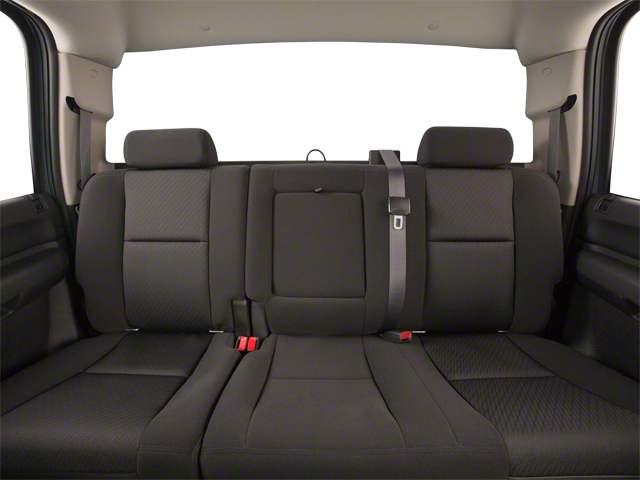

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)

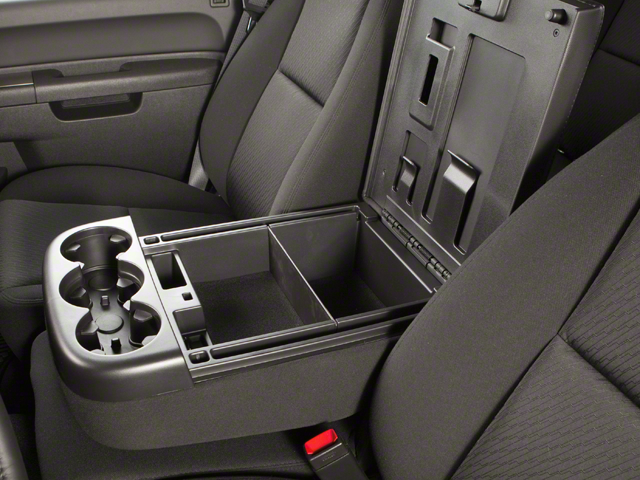

• Console, floor with storage compartment 2 auxiliary power outlets and dual cup holders
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)

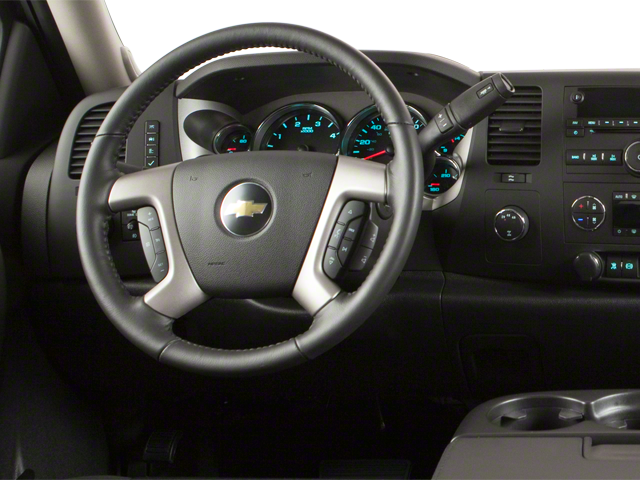

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Steering wheel controls, mounted audio controls
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

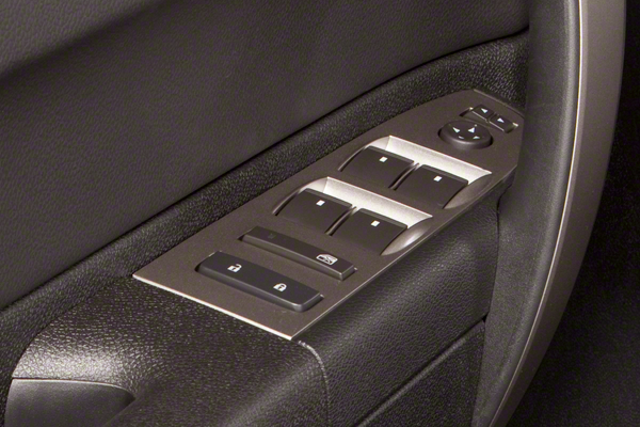

• Windows, power with driver Express-Down (Includes front passenger Express-down.)
• Door locks, power includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed, located on steering wheel
• Remote vehicle starter system includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (Remote Keyless Entry does not lock/unlock tailgate.)
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Crash Response
• Stolen Vehicle Assistance
• OnStar Turn-by-Turn Navigation
• Door locks, rear child security (Crew Cab models only.)
• Tire Pressure Monitor System (does not apply to spare tire)

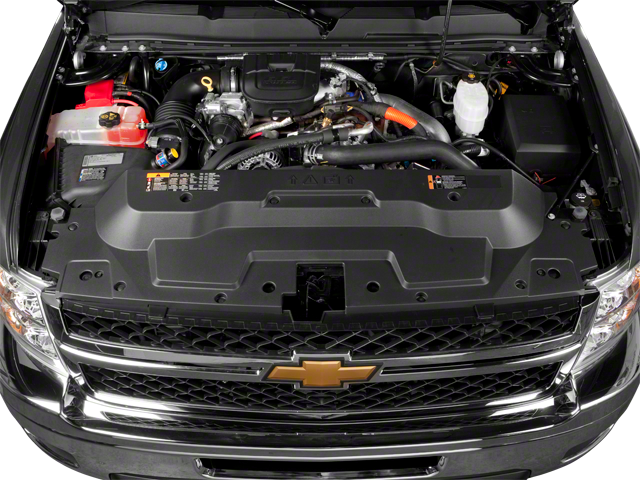

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

AIR BAGS, HEAD CURTAIN SIDE-IMPACT, FRONT OUTBOARD SEATING POSITIONS

• with rollover sensor

AIR BAGS, SEAT-MOUNTED SIDE-IMPACT, DRIVER AND RIGHT-FRONT PASSENGER

• for thorax and pelvic protection

• LICENSE PLATE FRONT MOUNTING PACKAGE
• SUSPENSION PACKAGE OFF-ROAD includes 35mm deflective disk twin tube shock absorbers off-road jounce bumpers 33mm front stabilizer bar (NZZ) skid plate package and Z71 decals on rear quarters
• NAVTRAFFIC is available in over 130 markets and works with your vehicle's navigation system to give you detailed traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups save time and gas by getting alternate routes and in some cases receive traffic speed and drive-time information. Plus you can use NavTraffic at the same time you're enjoying SiriusXM Satellite Radio. You'll find that once you start using NavTraffic you won't want to drive without it.
• UNIVERSAL HOME REMOTE
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• AIR BAGS HEAD CURTAIN SIDE-IMPACT FRONT OUTBOARD SEATING POSITIONS with rollover sensor
• ENGINE BLOCK HEATER
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• REAR PARKING ASSIST ULTRASONIC with audible warning
• TAILGATE EZ-LIFT
• EBONY CUSTOM PERFORATED LEATHER-APPOINTED FRONT SEAT TRIM
• AUDIO SYSTEM WITH NAVIGATION AM/FM/SIRIUSXM STEREO WITH CD PLAYER 7-inch touchscreen Color Interface Display (CID) 30 gig usable Hard Drive storage space with navigation and voice recognition USB port MP3 playback capability Radio Data System (RDS) speed-compensated volume time shift recording capability Includes (UBS) NavTraffic.
• LTZ PLUS PACKAGE includes (UG1) Universal Home Remote (A60) locking tailgate (PPA) EZ-Lift tailgate (JF4) power-adjustable pedals (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner LPO
• GVWR 10 000 LBS. (4536 KG)
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness routed to front of pickup box
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• LPO REAR WHEELHOUSE LINER
• PAINT SOLID
• SILVER ICE METALLIC
• TIRES LT265/60R20E ALL-TERRAIN BLACKWALL
• TAILGATE LOCKING
• REAR VISION CAMERA
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• SEATS HEATED AND COOLED DRIVER AND FRONT PASSENGER FRONT BUCKET includes 12-way power driver and front passenger seat adjusters including 4-way power lumbar control 2-position driver memory adjustable head restraints floor console and storage pockets
• WHEELS 20 (50.8 CM) FORGED POLISHED ALUMINUM
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• AIR BAGS SEAT-MOUNTED SIDE-IMPACT DRIVER AND RIGHT-FRONT PASSENGER for thorax and pelvic protection
• EXHAUST BRAKE
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Premium Sound System
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Security System
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Smart Device Integration
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Child Safety Locks
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3721
• Curb Weight - Rear (lbs): 2710
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1410
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4175
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2350
• Maximum Trailering Capacity (lbs): 15800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): 2860
• Rear Tire Capacity (lbs): 3185
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 240.20
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 78.10
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 41.60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.90
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.20
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 40.60
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 65.50
• Summary

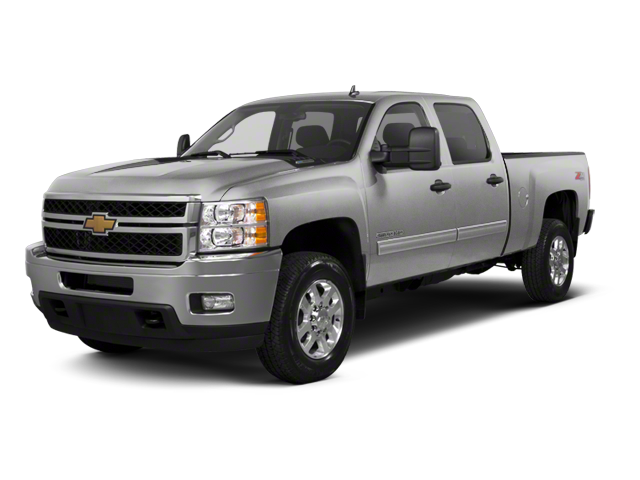

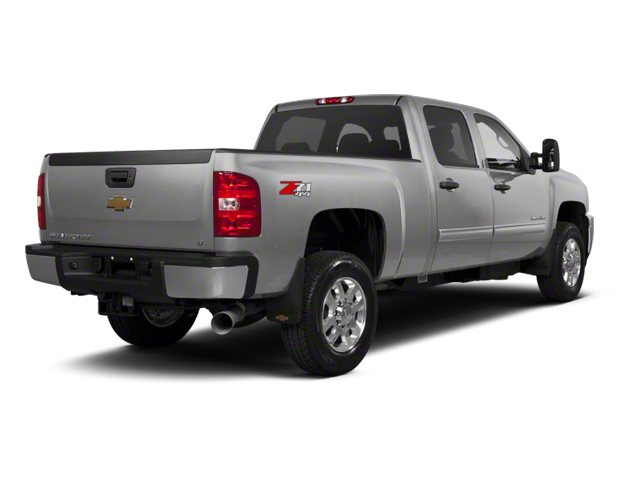

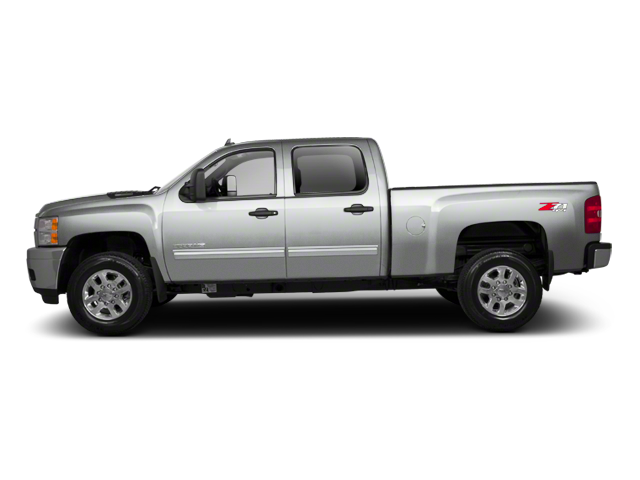

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
